Four- row Cylindrical roller bearing

Product name : Four- row Cylindrical roller bearing

Item :

Technical Data：

PDF Download

Details :

Four-row cylindrical roller bearings

Four row cylindrical roller bearings can carry much heavier radial load and shock load. They have higher precision and can be applied in the equipment which runs with high rotational speed. Grinding the surface of raceway and roller at same time after the inner ring is pressed on roller neck, it favors the improvement of rolling precision and the free adjustment of mounting clearance of bearings. These bearings are mostly applied to the working roller and backup roller of rolling mills and some other cases.

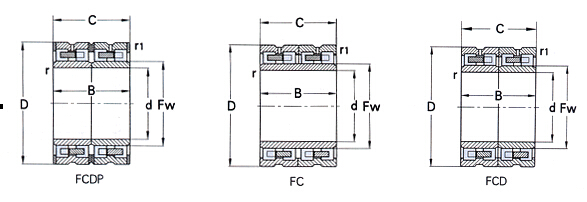

FC: double outer rings, single inner ring, and inner without flange.

FCD: double outer rings, double inner rings, and inner ring without flange.

FCDP: double outer rings, only have center flange, but with loose rib, double inner ring, inner without flange.

Four Row Cylindrical Roller Bearing

Bearing Designation	Boundary Dimensions				Mass(kg)
	d	D	B	C
	mm				Whole	Inside
FC182870	90	140	70	105	4	1.26
FC182874	90	140	74	105	4.2	1.33
FC1828105	90	140	105	105	6	1.89
FC202870	100	140	70	111	3.2	1
FC202880	100	140	80	111	3.5	1.14
FC2028104	100	140	104	111	4.8	1.49
FC202970	100	145	70	113	3.6	1.2
FC2030106	100	150	106	113	6.6	1.81
FC223490	110	170	90	127	7.3	2.5
FC223492	110	170	90	127	7.3	2.5
FC2234120	110	170	120	127	9.2	2.98
FC243692	120	180	92	137	7.8	2.48
FC2443120YA	120	180	120	136	11.5	3
FC2436064	120	180	64	137	5.93	1.69
FC2436105	120	180	105	135	9.3	2.48
SFC2443126	120	215	126	144.5	14.68	4.2
FC2640104	130	200	104	150	12.6	3.59
FC2640125	130	200	125	149	14.5	4.08
FC2838119	140	190	119
FC2842100	140	210	100
FC2842106	140	210	106	158	13	3.5
FC2842125	140	210	125	158	14.9	4.13
SFC2842125	140	210	125	158	16.6	4.04
FC2842155	140	210	155	158	14.9	5.12
FC2842168	138	255	168
FC2942155	145	210	155		18.3	6.5
FC2942156	145	225	156		20	7
FC3042120	150	210	120	166	12.5	3.8
FC3044120	150	220	120		16.5	6
FC3045120	150	225	120	169	15.9	4.48
FC3045120YA₄	150	225	120	169.5	16	4.6
FC3045150	150	225	150	169	20	5.6
FC3046150	150	230	150	174	22.8	5.8
FC3046156	150	230	156	174	28.7	7.47
FC3141160	155	205	160
FC3245120	160	225	120	177	15	4.3
FC3246130	160	230	130	178	16.8	5.91
FC3246168	160	230	168	177	22.5	7.04
FC3246168 YA₄	160	230	168	179	22.1	6.67
FC3248124	160	240	124	183	19.6	6.03
FC3248168	160	240	168	183	26.1	8.17
SFC3248204	160	240	204	180	33.5	7.53
FC3446130	170	230	130	188.5	15.6	5.3
FC3446180	170	230	180	186	21.1	6.3
FC3448130	170	240	130	190	18.7	5.8
FC3450130	170	250	130	192	22.6	6.3
FC3450170	170	250	170	192	28.6	6.3
FC3452120	170	260	120	195	22.8	6.7
FC3452150	170	260	150	195	28	8.4
FC3452170	170	260	170	195	31	9.5
FC3452192	170	260	192	195	36.6	10.8
FC3452225	170	260	225	196	43.5	13
FC3650156	180	250	156	198	22.8	6.5
FC3652120	180	260	120	202	20.2	6.2
FC3652124	180	260	124	202	20.7	6.4
FC3652140	180	260	140		25	8
FC3654154	180	260	154		27	9
FC3456156	180	260	156	198	28	6.5
FC3652160	180	260	160	202	28.4	8.2
FC3652168	180	260	168	202	28.7	8.7
SFC3652168	180	260	168	202	32.7	8.51
FC3652180	180	260	180	202	31.5
FC3656180	180	280	180	206	40.4	11
FC3656180YA4	180	280	180	207	41	11.5
FC3852124	190	260	124	212	19.5
FC3852168	180	260	168	212	26.1	9.2
FC3853124	180	265	124	213	21.2	7
FC3854166	180	270	166	212	30.5	9
FC3854168	180	270	168	212	30.9	9.2
FC3854200	180	270	200	212	36.3	10.9
FC3856178	180	280	178	214	38.8	10.5
FC3856200	180	280	200	214	41.5	11.9
FC4054170	200	270	170	222	28.5	9.7
FC4056170	200	280	170	222	33.5	9.7
FC4056188	200	280	188	222	36.1	10.7
FC4056200	200	280	200	222	37.5	11.4
FC4058130	200	290	130	226	27.6	8.8
FC4058192	200	290	192	226	41.7	13
FC4058202	200	290	202	226	43.4	13.7
SFC4062175	200	310	175	230	56.03	11.69
SFC4072206	200	360	206	244	96	22.2
FC4156190	210	280	190	227	35.6	12.9
FC4258192	210	290	192	234	38.2	13.7
FC4258192YA₄	210	290	192	236	38.4
FC4260170	210	300	170	234	38.1	11
FC4260210	210	300	210	234	47.6	13.7
FC4460192	220	300	192	242	39.9	12
FC4462157	220	310	157		39.8	12
FC4462190	220	310	190	246	45.3	14
FC4462192	220	310	192	246	46	14.3
FC4462225	220	310	225	244	54.5	15.4
FC4462225YA₄	220	310	225	245	54	16
FC4464192	220	320	192	248	51.8	15
FC4464210	220	320	210	248	55	17
FC4468192	220	340	192	246	64.5	14.3
FC4666206	230	330	206	260	56.1	18.6
FC4866220	240	330	220	264	55.5	16.4
FC4866220YA₄	240	330	220	270	60.4	16.4
FC4868192	240	340	192	268	56.5	16.8
FC4872220	240	360	220	272	77.7	22.25
FC5068170	250	340	170	274	43.9	13
FC5070220	250	350	220	278	65.3	20
FC5070230	250	350	230	278	69	20.9
FC5072220	250	350	220	282	66.9	23
FC5272192	260	360	192	288	62.3
SFC5272192	260	360	192	288	62.3
FC5272200YA₃	260	360	200	288	62.7	18.5
FC5274200	260	370	200	292	68.5	21.4
FC5274220	260	370	220	292	76	23.9
FC5274230	260	370	230	292	78.6	25
FC5276220	260	380	220	292	84.5	23.9
FC5276280	260	380	280	294	107.5	32.5
FC5276280YA₄	260	380	280	295	107.5	33.5
FC5280290	260	400	200		100	32
FC5476230	270	380	230	298	80.9	22.5
FC5476275	270	380	275	298	98.3	26.9
FC5476275YA₃	270	380	275	300	101.3	28.9
FC5478220	270	390	220	306	86.3	28
FC5478240	270	390	240	298	94	30.5
FC5675200	280	375	200	307	62.2	19.5
FC5676192	280	380	192	310	63.4	20.9
FC5676290	280	380	290		97.2	32
FC5676220	280	390	220	312	81.8	25.6
FCD5678275YA3	280	390	275		106	27.4
FC5678240	280	390	240	312	88.4	28
FC5678275	280	390	275	308	106	27.4
FC5682300	280	410	300	313	141	33
FC5684280	280	420	280	318	137.2	39
FC5882240	290	410	240	320	101	27
FC5884300	290	420	300	327	145	20.7
FC6084218	300	420	218	332	94.2	27
FC6084240	300	420	240	332	104	29.9
FC6084260	300	420	260	332	111.7	32
FC6084300	300	420	300	332	129.6	37
FC6084320	300	420	320	332	134.9	39.9
FC6286240	310	430	240		106
FC6488240	320	440	240	351	122	30.7
FC6488300	320	440	300	351	142	38
FC6490180	320	450	180	355	90.1	26
FC6490240	320	450	240	354	120.1	33.9
FC6492300	320	460	300	357	157.1	46
FC6492340	320	460	340	354	183.3	48
FC6496290	320	480	290	364	185.6	53.8
FC6692340	330	460	340	365	174.6	50.9
FC6890250	340	450	250	364	108.6	26
FC6890250YA₄	340	450	250	371	109	33.9
FC6892260	340	460	260	370	124.8	34
FC6896280	340	480	280	374	160.7	41.9
FC70100380	350	500	380	389	242.3	67.5
FC80112410	400	560	410	445	315	95
FC84120440	420	600	440	470	400	120
FC88124450	440	620	450	487	440	120.8
FC92130470	460	650	470	509	510	137.5
FC96136500	480	680	500	532	605	162.2
FCD3652168	180	260	168	202	28.7	8.7
FCD4058192	200	290	192	226	41.7	13
FCD4260210	210	300	210	234	47.6	13.7
FCD5276280	260	380	280	295	112	32.1
FCD5276290	260	380	290	295	118	17.1
FCD5280290	260	400	290		135	30
FCD5476230	270	380	230		85.3	28
FCD5478240	270	390	240		85.8	29
FCD5678220	280	390	220	312	83.6	25.6
FCD5684280	280	420	280	318	135	16.8
FCD5678275	280	390	275	308	104	13.6
FCD5684275	280	420	275	318	135	16.8
FCD5882240	290	410	240	240	101	27
FCD5884300	290	420	420	300	145	27
FCD6088340	290	440	440	340	105	37.4
FCD6084300	300	420	300	330	129.6	37.4
FCD6488240	320	440	240	351	128	30.7
FCD6490240	320	450	240	350	120.1	34.9
FCD6492300	320	460	300	460	157.1	46
FCD6492340	320	460	340	354	183.3	48
FCD6492340YA₄	320	460	340	360	183	57
FCD6496290	320	480	290	364	185.6	53.8
FCD6496350	320	480	350	364	231
FCD6692340	330	460	340	365	180	24.9
FCD6890250	340	450	250	364	108.6	26
FCD6892260	340	460	260	370	124.8	34
FCD6896280	340	480	280	378	160.7	47
FCD6896350	340	480	350	378	200.9	58.8
FCD70100380	350	500	380	389	242.3	67.5
FCD70104300	350	520	300	401	220	70.8
FCD72102370	360	510	370	392	244	26.6
FCD74104380	370	520	380	409	253	253
FCD74108400	370	540	400	414	309.4	309.4
FCD76108400	380	540	400	422	294.4	294.4
FCD80112410	400	560	418	445	315	96
FCD80110300	400	550	300	443	212.6	86
FCD84120440	420	600	440	470	430	120.7
FCD88124450	440	620	450	487	440	120.7
FCD92130470	460	650	470	509	495	135
FCD96136500	480	680	500	532	595	200
FCD100134450YA3	500	670	450	540	462	130
FCDP6084300	300	420	300	332	135
FCDP6088340	300	440	340	345	170
FCDP6492340	320	460	340	354	183.3
FCDP6496350	320	480	350	364	173.7
FCDP6692340	330	460	340	365	174.6
FCDP6896350	340	480	350	378	200.9
FCDP70100380	350	500	380	389	242
FCDP72102370	360	510	370	392
FCDP72102380	360	520	380	400
FCDP74104380	370	520	380	409	255
FCDP76108400	380	540	400	422	295
FCDP80110300	400	550	300	443	212.6
FCDP80112410	400	560	410	445	315
FCDP84120440	420	600	440	470	400
FCDP88124450	440	620	450	487	440
FCDP92130470	460	650	470	509	510
FCDP96136500	480	680	500	532	590
FCDP96136500/YA₄	480	680	500	534	589
FCDP100134450	500	670	450		462
FCDP100136405	500	680	405		450
FCDP114150530	570	750	530
FCDP114163594	570	815	594		1066
FCDP160216700/HC	800	1080	700		1950
FCDP166216710	830	1080	710		1746
FCDP190260850	950	1300	850		3523
FCDP1001134450	500	670	450		441
FCDP74104380	370	520	380		253
FCDP132215658	658	1075	650		2400
